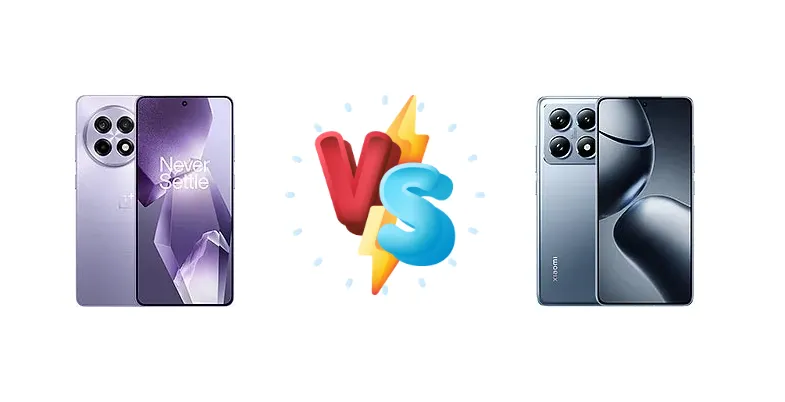

OnePlus Ace 5 Pro vs Xiaomi 14T Pro: A Deep Dive into Performance and Charging
| Phones Images | |||||
|---|---|---|---|---|---|
|
🏆 Quick Verdict
For users prioritizing peak performance and sustained gaming, the OnePlus Ace 5 Pro is the clear winner thanks to its Snapdragon 8 Elite chipset. However, the Xiaomi 14T Pro counters with significantly faster charging and excellent battery endurance, making it ideal for power users who value convenience.
| PHONES | ||
|---|---|---|
| Phone Names | OnePlus Ace 5 Pro | Xiaomi 14T Pro |
| Network | ||
|---|---|---|
| 2G bands | GSM 850 / 900 / 1800 / 1900 | GSM 850 / 900 / 1800 / 1900 |
| 3G bands | HSDPA 800 / 850 / 900 / 1700(AWS) / 2100 | HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G bands | 1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 48, 66 | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 42, 48, 66 |
| 5G bands | 1, 3, 5, 8, 28, 38, 40, 41, 48, 66, 77, 78, 79, 80, 81, 83, 84, 89 SA/NSA | 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 38, 40, 41, 48, 66, 75, 77, 78 SA/NSA |
| Speed | HSPA, LTE, 5G | HSPA, LTE, 5G |
| Technology | GSM / CDMA / HSPA / LTE / 5G | GSM / HSPA / LTE / 5G |
| Launch | ||
|---|---|---|
| Announced | 2024, December 26 | 2024, September 26 |
| Status | Available. Released 2024, December 31 | Available. Released 2024, September 26 |
| Body | ||
|---|---|---|
| Build | Glass front (Crystal Shield Glass), glass back (Crystal Shield Glass), aluminum frame | Glass front (Gorilla Glass 5), aluminum frame, glass back (Panda X) |
| Dimensions | 161.7 x 75.8 x 8.1 mm (6.37 x 2.98 x 0.32 in) | 160.4 x 75.1 x 8.4 mm (6.31 x 2.96 x 0.33 in) |
| SIM | Nano-SIM + Nano-SIM | · Nano-SIM + eSIM· eSIM + eSIM· Nano-SIM + Nano-SIM |
| Weight | 203 g or 217 g (7.16 oz) | 209 g (7.37 oz) |
| Display | ||
|---|---|---|
| Protection | Crystal Shield Glass | Corning Gorilla Glass 5 |
| Resolution | 1264 x 2780 pixels (~450 ppi density) | 1220 x 2712 pixels, 20:9 ratio (~446 ppi density) |
| Size | 6.78 inches, 111.7 cm2 (~91.2% screen-to-body ratio) | 6.67 inches, 107.4 cm2 (~89.1% screen-to-body ratio) |
| Type | LTPO AMOLED, 1B colors, 120Hz, HDR10+, Dolby Vision, 800 nits (typ), 1600 nits (HBM), 4500 nits (peak) | AMOLED, 68B colors, 144Hz, 3840Hz PWM, Dolby Vision, HDR10+, 1600 nits (HBM), 4000 nits (peak) |
| Platform | ||
|---|---|---|
| CPU | Octa-core (2x4.32 GHz Oryon V2 Phoenix L + 6x3.53 GHz Oryon V2 Phoenix M) | Octa-core (1x3.4 GHz Cortex-X4 & 3x2.85 GHz Cortex-X4 & 4x2.0 GHz Cortex-A720) |
| Chipset | Qualcomm SM8750-AB Snapdragon 8 Elite (3 nm) | Mediatek Dimensity 9300+ (4 nm) |
| GPU | Adreno 830 | Immortalis-G720 MC12 |
| OS | Android 15, ColorOS 15 | Android 14, HyperOS |
| Memory | ||
|---|---|---|
| Card slot | No | No |
| Internal | 256GB 12GB RAM, 256GB 16GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 16GB RAM | 256GB 12GB RAM, 512GB 12GB RAM, 512GB 16GB RAM, 1TB 12GB RAM |
| Main Camera | ||
|---|---|---|
| Features | Color spectrum sensor, Dual-LED flash, HDR, panorama | Leica lens, Ultra HDR, LED flash, HDR, panorama |
| Triple | 50 MP, f/1.8, 24mm (wide), 1/1.56", 1.0µm, PDAF, OIS 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm 2 MP (macro) | 50 MP, f/1.6, 23mm (wide), 1/1.31", 1.2µm, PDAF, OIS 50 MP, f/2.0, 60mm (telephoto), 1/2.88", 0.61µm, PDAF, 2.6x optical zoom 12 MP, f/2.2, 15mm (ultrawide), 1/3.06", 1.12µm |
| Video | 4K@30/60fps, 1080p@30/60/120/240fps, gyro-EIS, OIS | 8K@24/30fps, 4K@24/30/60fps, 1080p@30/60/120/240/960fps, gyro-EIS, 10-bit Rec. 2020, HDR10+ |
| Selfie camera | ||
|---|---|---|
| Features | HDR, panorama | HDR |
| Single | 16 MP, f/2.4, 24mm (wide), 1/3", 1.0µm | 32 MP, f/2.0, 25mm (wide), 1/3.44", 0.64µm |
| Video | 1080p@30fps, gyro-EIS | 4K@30fps, 1080p@30/60fps, HDR10+ |
| Sound | ||
|---|---|---|
| 35mm jack | No | No |
| Loudspeaker | Yes, with stereo speakers | Yes, with stereo speakers |
| Comms | ||
|---|---|---|
| Bluetooth | 5.4, A2DP, LE, aptX HD, LHDC 5 | 5.4, A2DP, LE, LHDC |
| Infrared port | Yes | Yes |
| NFC | Yes | Yes (market/region dependent) |
| Positioning | GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5) | GPS (L1+L5), BDS (B1I+B1C+B2a+B2b), GALILEO (E1+E5a+E5b), QZSS (L1+L5), NavIC (L5), GLONASS |
| Radio | No | No |
| USB | USB Type-C 2.0 | USB Type-C 2.0, OTG |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band | Wi-Fi 802.11 a/b/g/n/ac/6e/7, dual-band, Wi-Fi Direct |
| Features | ||
|---|---|---|
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
| Battery | ||
|---|---|---|
| Charging | 100W wired, 33W PPS, 18W PD/QC, 55% in 15 min, 100% in 35 min | 120W wired, PD3.0, QC4, 100% in 19 min 50W wireless, 100% in 45 min |
| Type | Si/C Li-Ion 6100 mAh | Li-Po 5000 mAh |
| Misc | ||
|---|---|---|
| Colors | Gray, White, Purple | Titan Gray, Titan Blue, Titan Black |
| Models | PKR110 | 2407FPN8EG |
| Price | About 450 EUR | $ 550.00 / £ 498.00 / € 539.99 |
| SAR EU | - | 0.99 W/kg (head) 1.00 W/kg (body) |
OnePlus Ace 5 Pro
- Potentially superior CPU and GPU performance with Snapdragon 8 Elite
- Advanced image processing capabilities from Qualcomm ISP
- Fast 100W wired charging
- Battery life is unknown, potentially less than Xiaomi 14T Pro
- Charging speed is slower than Xiaomi 14T Pro
Xiaomi 14T Pro
- Exceptional battery life with 12:32h active use score
- Industry-leading 120W wired charging (19 minutes to full)
- Brighter display for outdoor visibility
- Chipset performance may be slightly lower than Snapdragon 8 Elite
- Image processing may not be as advanced as Qualcomm’s offering
Display Comparison
The Xiaomi 14T Pro boasts a brighter display, reaching a measured peak of 1228 nits, compared to an unspecified peak brightness for the Ace 5 Pro. This translates to better visibility under direct sunlight. While both likely utilize AMOLED panels, the Xiaomi’s higher brightness is a tangible advantage. Details regarding refresh rate and panel technology (LTPO) are missing for the Ace 5 Pro, but the 14T Pro’s brightness is a clear win for outdoor use.
Camera Comparison
Without detailed camera specifications for either device, a direct comparison is difficult. However, focusing on the chipset’s ISP capabilities, the Snapdragon 8 Elite likely offers more advanced image processing features. The Xiaomi 14T Pro’s image processing will be strong, but Qualcomm’s ISP has historically been a leader in computational photography. The absence of information regarding sensor sizes and OIS on both devices makes a definitive statement impossible, but the Ace 5 Pro’s chipset gives it a potential advantage.
Performance
The core difference lies in the chipsets. The OnePlus Ace 5 Pro’s Snapdragon 8 Elite (3nm) utilizes Qualcomm’s Oryon V2 Phoenix cores – a significant departure from traditional ARM designs – promising substantial performance gains. Its octa-core configuration (2x4.32 GHz + 6x3.53 GHz) is geared towards maximizing both peak and sustained performance. The Xiaomi 14T Pro’s Dimensity 9300+ (4nm) employs a different architecture (1x3.4 GHz Cortex-X4 + 3x2.85 GHz Cortex-X4 + 4x2.0 GHz Cortex-A720). While the Dimensity 9300+ is a powerful chip, the Snapdragon 8 Elite’s 3nm process and Oryon cores suggest a performance edge, particularly in GPU-intensive tasks. The Ace 5 Pro’s LPDDR5x RAM configuration, while standard, complements the chipset’s capabilities.
Battery Life
The Xiaomi 14T Pro excels in charging speed, supporting 120W wired charging, achieving a full charge in just 19 minutes. It also offers 50W wireless charging (45 minutes to full). The OnePlus Ace 5 Pro, while still fast at 100W (35 minutes to full), falls behind. However, the Xiaomi 14T Pro’s active use battery score of 12:32h is a significant advantage, demonstrating superior battery endurance. The Ace 5 Pro’s battery capacity is unspecified, but the Xiaomi’s combination of fast charging and long-lasting battery life is a compelling proposition.
Buying Guide
Buy the OnePlus Ace 5 Pro if you need uncompromising processing power for demanding games, content creation, or heavy multitasking. Its Snapdragon 8 Elite chipset and optimized thermal design deliver a superior experience in these scenarios. Buy the Xiaomi 14T Pro if you prioritize all-day battery life and the fastest possible charging speeds. The 120W charging and 12:32h active use score make it perfect for users constantly on the go.
