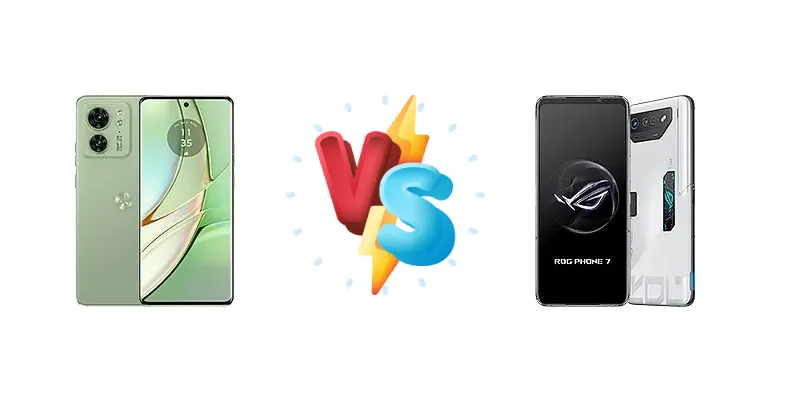

Asus ROG Phone 7 Ultimate vs. Motorola Edge 40: A Deep Dive Comparison
| Phones Images | |||||
|---|---|---|---|---|---|
|
🏆 Quick Verdict
For the average user prioritizing a sleek design and all-around usability, the Motorola Edge 40 offers a compelling package. However, the Asus ROG Phone 7 Ultimate is the clear winner for dedicated mobile gamers, thanks to its superior chipset, longer battery life, and gaming-centric features.
| PHONES | ||
|---|---|---|
| Phone Names | Motorola Edge 40 | Asus ROG Phone 7 Ultimate |
| Network | ||
|---|---|---|
| 2G bands | GSM 850 / 900 / 1800 / 1900 | GSM 850 / 900 / 1800 / 1900 |
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 26, 28, 32, 38, 39, 40, 41, 42, 43, 66 | 1, 2, 3, 4, 5, 7, 8, 12, 17, 18, 19, 20, 25, 26, 28, 32, 34, 38, 39, 40, 41, 42, 43, 48, 66 - International |
| 5G bands | 1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA/Sub6 | 1, 2, 3, 5, 7, 8, 12, 18, 20, 25, 26, 28, 38, 40, 41, 48, 66, 77, 78, 79 SA/NSA/Sub6 - International |
| Speed | HSPA, LTE, 5G | HSPA, LTE (Up to 7CA), 5G |
| Technology | GSM / HSPA / LTE / 5G | GSM / CDMA / HSPA / LTE / 5G |
| - | 1, 3, 5, 8, 28, 41, 77, 78, 79 SA/NSA/Sub6 - China | |
| Launch | ||
|---|---|---|
| Announced | 2023, May 04 | 2023, April 13 |
| Status | Available. Released 2023, May 04 | Available. Released 2023, May |
| Body | ||
|---|---|---|
| Build | Glass front, aluminum frame, plastic back or eco leather back | Glass front (Gorilla Glass Victus), glass back (Gorilla Glass 3), aluminum frame |
| Dimensions | 158.4 x 72 x 7.6 mm (6.24 x 2.83 x 0.30 in) | 173 x 77 x 10.3 mm (6.81 x 3.03 x 0.41 in) |
| SIM | · Nano-SIM· Nano-SIM + eSIM· Nano-SIM + Nano-SIM | Nano-SIM + Nano-SIM |
| Weight | 167 g or 171 g (5.89 oz) | 239 g (8.43 oz) |
| IP68 dust/water resistant (up to 1.5m for 30 min) | Built-in motorized cooling air vent (AeroActive Portal) IP54 water resistant 2" OLED display (on the back) Pressure sensitive zones (Gaming triggers) | |
| Display | ||
|---|---|---|
| Protection | - | Corning Gorilla Glass Victus |
| Resolution | 1080 x 2400 pixels, 20:9 ratio (~402 ppi density) | 1080 x 2448 pixels (~395 ppi density) |
| Size | 6.55 inches, 103.6 cm2 (~90.8% screen-to-body ratio) | 6.78 inches, 109.5 cm2 (~82.2% screen-to-body ratio) |
| Type | P-OLED, 144Hz, HDR10+, 1200 nits (peak) | AMOLED, 1B colors, 165Hz, HDR10+, 1000 nits (HBM), 1500 nits (peak) |
| Platform | ||
|---|---|---|
| CPU | Octa-core (4x2.6 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55) | Octa-core (1x3.2 GHz Cortex-X3 & 2x2.8 GHz Cortex-A715 & 2x2.8 GHz Cortex-A710 & 3x2.0 GHz Cortex-A510) |
| Chipset | Mediatek Dimensity 8020 (6 nm) | Qualcomm SM8550-AB Snapdragon 8 Gen 2 (4 nm) |
| GPU | Mali-G77 MC9 | Adreno 740 |
| OS | Android 13, up to 2 major Android upgrades | Android 13, up to 2 major Android upgrades |
| Memory | ||
|---|---|---|
| Card slot | No | No |
| Internal | 128GB 8GB RAM, 256GB 8GB RAM | 512GB 16GB RAM |
| UFS 3.1 | UFS 4.0 NTFS support for external storage | |
| Main Camera | ||
|---|---|---|
| Dual | 50 MP, f/1.4, (wide), 1/1.55", 1.0µm, multi-directional PDAF, OIS 13 MP, f/2.2, 120˚ (ultrawide), 1/3.0", 1.12µm, AF | - |
| Features | Dual-LED flash, HDR, panorama | LED flash, HDR, panorama |
| Triple | - | 50 MP, f/1.9, 24mm (wide), 1/1.56", 1.0µm, PDAF 13 MP, f/2.2, 13mm, 120˚ (ultrawide) 5 MP (macro) |
| Video | 4K@30fps, 1080p@30/60/120fps, 720p@960fps, HDR10, gyro-EIS | 8K@24fps, 4K@30/60fps, 1080p@30/60/120/240fps, 720p@480fps; gyro-EIS, HDR10+ |
| Selfie camera | ||
|---|---|---|
| Features | HDR | Panorama, HDR |
| Single | 32 MP, f/2.4, (wide), 1/3.0", 0.7µm | 32 MP, f/2.5, 29mm (wide), 1/3.2", 0.7µm |
| Video | 4K@30fps, 1080p@30/120fps | 1080p@30fps |
| Sound | ||
|---|---|---|
| 3.5mm jack | No | Yes |
| 35mm jack | No | Yes |
| Loudspeaker | Yes, with stereo speakers | Yes, with stereo speakers (2 amplifiers) |
| - | 32-bit/384kHz audio | |
| Comms | ||
|---|---|---|
| Bluetooth | 5.2, A2DP, LE | 5.3, A2DP, LE, aptX HD, aptX Adaptive, aptX Lossless |
| NFC | Yes | Yes |
| Positioning | GPS, GLONASS, GALILEO, BDS | GPS (L1+L5), GLONASS (L1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5), NavIC (L5) |
| Radio | No | No |
| USB | USB Type-C 2.0, OTG | USB Type-C 3.1 (side), DisplayPort 1.4; USB Type-C 2.0 (bottom), OTG, accessory connector |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct | Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, Wi-Fi Direct |
| Features | ||
|---|---|---|
| Sensors | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass | Fingerprint (under display, optical), accelerometer, gyro, proximity, compass |
| Moto Ready For support | - | |
| Battery | ||
|---|---|---|
| Charging | 68W wired 15W wireless | 65W wired, PD3.0, QC5, 100% in 42 min 10W reverse wired |
| Type | Li-Po 4400 mAh | Li-Po 6000 mAh |
| Misc | ||
|---|---|---|
| Colors | Nebula Green, Lunar Blue, Eclipse Black, Viva Magenta | Storm White |
| Models | XT2303-2 | - |
| Price | € 202.03 / $ 419.99 / £ 199.00 / ₹ 29,999 | About 780 EUR |
| Tests | ||
|---|---|---|
| Battery life | Endurance rating 98h | Endurance rating 131h |
| Camera | Photo / Video | Photo / Video |
| Display | Contrast ratio: Infinite (nominal) | Contrast ratio: Infinite (nominal) |
| Loudspeaker | -24.2 LUFS (Very good) | -25.5 LUFS (Very good) |
| Performance | AnTuTu: 688347 (v9) GeekBench: 3320 (v5.1), 3603 (v6) GFXBench: 33fps (ES 3.1 onscreen) | AnTuTu: 1325105 (v9) GeekBench: 5139 (v5.5), 5567 (v6) GFXBench: 107fps (ES 3.1 onscreen) |
Motorola Edge 40
- Sleek and compact design
- Vibrant and color-accurate display
- Faster wireless charging (15W vs 10W)
- Less powerful chipset for gaming
- Shorter battery life
- Less gaming-focused features
Asus ROG Phone 7 Ultimate
- Unmatched gaming performance
- Exceptional battery life
- Faster wired charging and reverse charging
- Bulky and aggressive design
- Less emphasis on camera quality
- Higher price point
Display Comparison
Both devices feature displays with an 'Infinite' contrast ratio, suggesting excellent black levels. However, the Asus ROG Phone 7 Ultimate edges out the Motorola Edge 40 with a measured peak brightness of 1095 nits compared to the Edge 40’s 1043 nits, providing better visibility in direct sunlight. While both offer excellent viewing experiences, the ROG Phone’s larger size and higher brightness are geared towards immersive gaming, while the Edge 40’s display prioritizes color accuracy and a more refined aesthetic. We lack PWM frequency data, but the Edge 40's marketing emphasizes eye comfort, suggesting a potentially higher PWM rate beneficial for sensitive users.
Camera Comparison
Both phones offer photo and video capabilities, but detailed sensor information is missing. Given the ROG Phone 7 Ultimate’s focus on gaming, its camera system is likely optimized for quick snapshots and social media sharing. The Motorola Edge 40, positioned as a more mainstream flagship, may prioritize image quality and versatility. Without specific sensor details, it’s difficult to make a definitive judgment, but the ROG Phone’s camera is unlikely to be a primary selling point, while the Edge 40 may offer a more refined photographic experience.
Performance
The core difference lies in the chipsets. The Asus ROG Phone 7 Ultimate boasts the Qualcomm Snapdragon 8 Gen 2 (4nm), featuring a Cortex-X3 prime core clocked at 3.2GHz, while the Motorola Edge 40 utilizes the Mediatek Dimensity 8020 (6nm). The 4nm process of the Snapdragon 8 Gen 2 offers significantly improved thermal efficiency compared to the 6nm Dimensity 8020, translating to less throttling during sustained workloads like gaming. The ROG Phone’s CPU architecture – with its Cortex-X3 and A715/A710 cores – provides a substantial performance advantage over the Edge 40’s Cortex-A78/A55 configuration. This difference is particularly noticeable in demanding games and applications.
Battery Life
The Asus ROG Phone 7 Ultimate’s endurance rating of 131 hours significantly surpasses the Motorola Edge 40’s 98 hours. This is due to a combination of a larger battery capacity (not specified, but likely significantly larger than the Edge 40’s) and the more efficient Snapdragon 8 Gen 2 chipset. While the Edge 40 supports 68W wired charging and 15W wireless, the ROG Phone 7 Ultimate offers 65W wired charging with PD3.0 and QC5 support, achieving a 100% charge in just 42 minutes. The ROG Phone also includes 10W reverse wired charging, a feature absent on the Edge 40, allowing it to charge other devices.
Buying Guide
Buy the Motorola Edge 40 if you need a stylish, pocketable flagship with a vibrant display and solid performance for everyday tasks and casual gaming. Buy the Asus ROG Phone 7 Ultimate if you prioritize uncompromising gaming performance, extended battery life during intense sessions, and are willing to accept a larger, more aggressive design.
