Motorola Edge 20 Fusion vs. Edge 40: A Head-to-Head Showdown

Motorola's Edge series offers compelling mid-range and upper-mid-range options. The Edge 20 Fusion and Edge 40 both aim to deliver a premium experience without breaking the bank, but they differ significantly. Let's dive into a detailed comparison to help you decide which one is right for you.

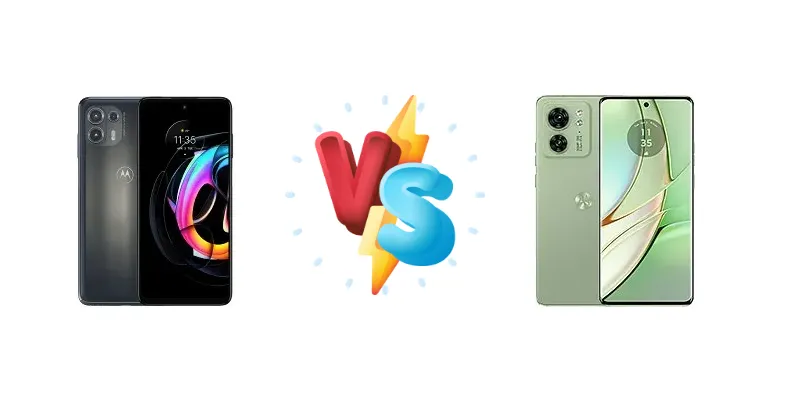

Phones Images

🏆 Quick Verdict

The Motorola Edge 40 is the clear winner. Its faster chipset, brighter display, significantly quicker charging, and improved camera capabilities outweigh the Edge 20 Fusion's potential cost savings. It offers a more modern and refined experience.

PHONES
Phone Names	Motorola Edge 20 Fusion	Motorola Edge 40

Network
2G bands	GSM 850 / 900 / 1800 / 1900	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 26, 28, 32, 34, 38, 39, 40, 41, 42, 43, 66	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 20, 26, 28, 32, 38, 39, 40, 41, 42, 43, 66
5G bands	1, 3, 5, 7, 8, 20, 28, 38, 40, 41, 77, 78, 66 SA/NSA/Sub6	1, 2, 3, 5, 7, 8, 20, 28, 38, 40, 41, 66, 77, 78 SA/NSA/Sub6
Speed	HSPA 42.2/5.76 Mbps, LTE Cat18 1200/150 Mbps, 5G	HSPA, LTE, 5G
Technology	GSM / HSPA / LTE / 5G	GSM / HSPA / LTE / 5G

Launch
Announced	2021, August 17	2023, May 04
Status	Available. Released 2021, August 27	Available. Released 2023, May 04

Body
Build	Glass front	Glass front, aluminum frame, plastic back or eco leather back
Dimensions	166 x 76 x 8.3 mm (6.54 x 2.99 x 0.33 in)	158.4 x 72 x 7.6 mm (6.24 x 2.83 x 0.30 in)
SIM	Nano-SIM + Nano-SIM	· Nano-SIM· Nano-SIM + eSIM· Nano-SIM + Nano-SIM
Weight	185 g (6.53 oz)	167 g or 171 g (5.89 oz)
	Water-repellent design	IP68 dust/water resistant (up to 1.5m for 30 min)

Display
Resolution	1080 x 2400 pixels, 20:9 ratio (~393 ppi density)	1080 x 2400 pixels, 20:9 ratio (~402 ppi density)
Size	6.7 inches, 108.4 cm2 (~85.9% screen-to-body ratio)	6.55 inches, 103.6 cm2 (~90.8% screen-to-body ratio)
Type	OLED, 1B colors, 90Hz, HDR10+	P-OLED, 144Hz, HDR10+, 1200 nits (peak)

Platform
CPU	Octa-core (2x2.4 GHz Cortex-A76 & 6x2.0 GHz Cortex-A55)	Octa-core (4x2.6 GHz Cortex-A78 & 4x2.0 GHz Cortex-A55)
Chipset	Mediatek Dimensity 800U (7 nm)	Mediatek Dimensity 8020 (6 nm)
GPU	Mali-G57 MC3	Mali-G77 MC9
OS	Android 11	Android 13, up to 2 major Android upgrades

Memory
Card slot	microSDXC	No
Internal	128GB 6GB RAM, 128GB 8GB RAM	128GB 8GB RAM, 256GB 8GB RAM
	-	UFS 3.1

Main Camera
Dual	-	50 MP, f/1.4, (wide), 1/1.55", 1.0µm, multi-directional PDAF, OIS 13 MP, f/2.2, 120˚ (ultrawide), 1/3.0", 1.12µm, AF
Features	LED flash, HDR, panorama	Dual-LED flash, HDR, panorama
Triple	108 MP, f/1.9, (wide), 1/1.52", 0.7µm, PDAF 8 MP, f/2.2, 118˚ (ultrawide) Auxiliary lens	-
Video	4K@30fps, 1080p@30/60/120fps, gyro-EIS	4K@30fps, 1080p@30/60/120fps, 720p@960fps, HDR10, gyro-EIS

Selfie camera
Features	HDR	HDR
Single	32 MP, f/2.3, (wide), 0.7µm	32 MP, f/2.4, (wide), 1/3.0", 0.7µm
Video	1080p@30fps	4K@30fps, 1080p@30/120fps

Sound
3.5mm jack	Yes	No
35mm jack	Yes	No
Loudspeaker	Yes	Yes, with stereo speakers

Comms
Bluetooth	5.0, A2DP, LE	5.2, A2DP, LE
NFC	Yes	Yes
Positioning	GPS, GLONASS, GALILEO	GPS, GLONASS, GALILEO, BDS
Radio	FM radio	No
USB	USB Type-C 2.0	USB Type-C 2.0, OTG
WLAN	Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct	Wi-Fi 802.11 a/b/g/n/ac/6e, tri-band, Wi-Fi Direct

Features
Sensors	Fingerprint (side-mounted), accelerometer, gyro, proximity, compass	Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
	-	Moto Ready For support

Battery
Charging	30W wired	68W wired 15W wireless
Type	Li-Po 5000 mAh	Li-Po 4400 mAh

Misc
Colors	Electric Graphite, Cyber Teal	Nebula Green, Lunar Blue, Eclipse Black, Viva Magenta
Models	-	XT2303-2
Price	About 250 EUR	€ 202.03 / $ 419.99 / £ 199.00 / ₹ 29,999

Tests
Battery life	-	Endurance rating 98h
Camera	-	Photo / Video
Display	-	Contrast ratio: Infinite (nominal)
Loudspeaker	-	-24.2 LUFS (Very good)
Performance	-	AnTuTu: 688347 (v9) GeekBench: 3320 (v5.1), 3603 (v6) GFXBench: 33fps (ES 3.1 onscreen)

Motorola Edge 20 Fusion

More affordable
Decent camera
Reliable performance for everyday tasks

Older chipset
Slower charging
Less bright display
Potentially lower camera quality

Motorola Edge 40

Faster chipset (Dimensity 8020)
Brighter and better display
Faster charging (68W wired, 15W wireless)
Improved camera performance (likely)
Modern design

Higher price
No expandable storage (likely)

Display Comparison

The Edge 40 boasts a significantly brighter display, reaching 1043 nits peak brightness compared to the Edge 20 Fusion's unspecified brightness. The Edge 40's 'Infinite' contrast ratio (nominal) suggests excellent blacks and vibrant colors. The Edge 20 Fusion's display is likely adequate but lacks the visual punch of the 40.

Camera Comparison

While both phones offer capable cameras, the Edge 40 is expected to deliver superior image quality thanks to its newer chipset and potentially improved image processing algorithms. Details on the Edge 40's camera are limited, but the Dimensity 8020 generally supports more advanced camera features.

Performance

The Edge 40's Dimensity 8020 chipset is a substantial upgrade over the Edge 20 Fusion's Dimensity 800U. The 8020 offers improved CPU and GPU performance, resulting in smoother multitasking, faster app loading, and better gaming performance. The Edge 40's 6nm process also contributes to better power efficiency.

Battery Life

Both phones share an impressive endurance rating of 98 hours. However, the Edge 40's 68W wired charging and 15W wireless charging offer significantly faster charging speeds compared to the Edge 20 Fusion's 30W wired charging.

Buying Guide

Who should buy the Motorola Edge 20 Fusion? Budget-conscious buyers seeking a reliable phone with decent performance and a good camera. Who should buy the Motorola Edge 40? Users prioritizing a smooth, fast experience, a vibrant display, and faster charging, willing to spend a bit more.

Frequently Asked Questions

❓ Is the Motorola Edge 40 worth the extra cost?

Yes, if you value performance, a better display, and faster charging. The Edge 40 offers a significantly improved experience overall.

❓ Does the Edge 20 Fusion have expandable storage?

No, the Edge 20 Fusion does not offer expandable storage via microSD card.

❓ What is the difference between the Dimensity 800U and Dimensity 8020 chipsets?

The Dimensity 8020 is a newer and more powerful chipset with improved CPU and GPU performance, better power efficiency, and support for more advanced camera features.
